Introduction to Design Patterns

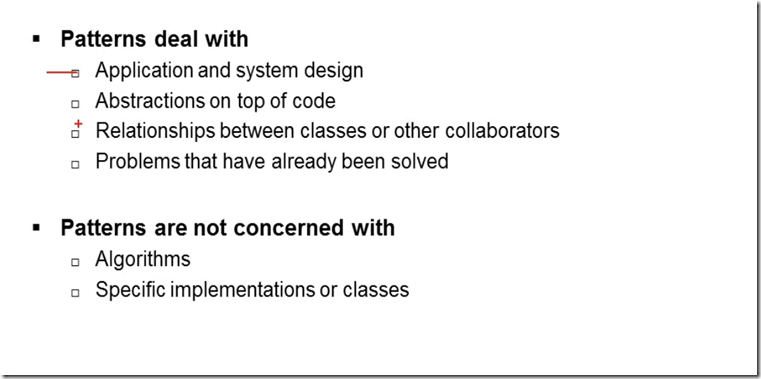

Design patterns are solutions to software design problems you find again and again in real-world application development. Patterns are about reusable designs and interactions of objects.

The 23 Gang of Four (GoF) patterns are generally considered the foundation for all other patterns. They are categorized in three groups: Creational, Structural, and Behavioral.

Creational Patterns

Builder Pattern

Another Real world Dialog without Builder pattern style

Another Real world Dialog with Builder pattern style

In this example, we provides only data to the process.

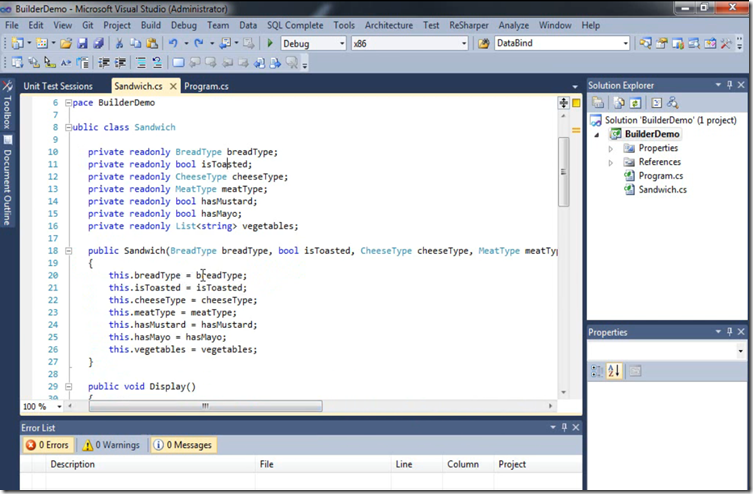

Problem 1 – Huge constructor parameter

Solution for this problem

We can introduce properties for these class creation by remove the Constructor method from the class.

Problem 2 – We cannot control the process and process steps either

Solution for this problem

Here, we created separate class to build this sandwich. In this way, we could make sure that sandwich constructed properly.

Problem 3 – When we create more different type of sandwich

We have to create new builder classes if you want to introduce new type of sandwiches.

Solution to this problem

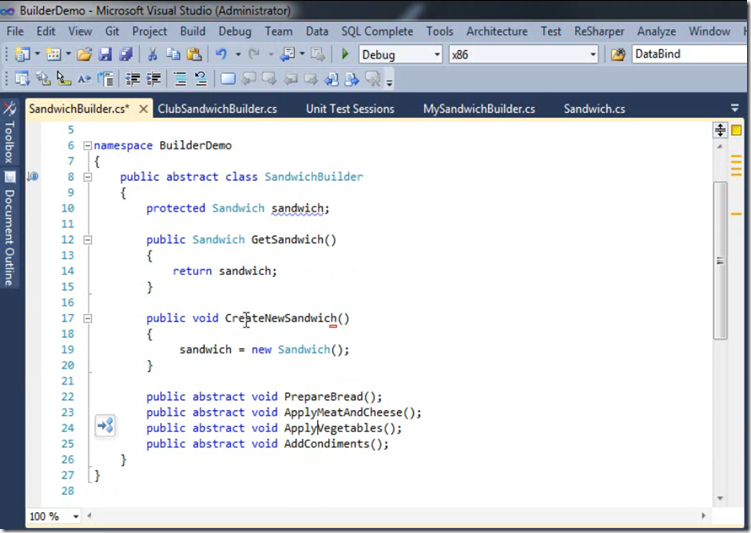

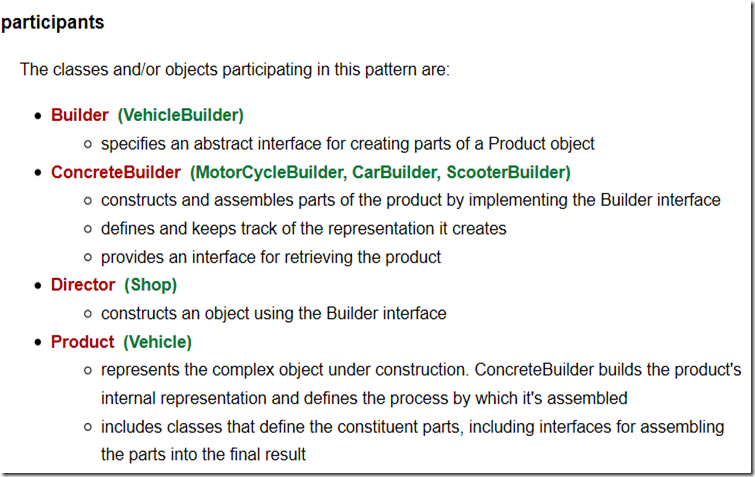

Builder

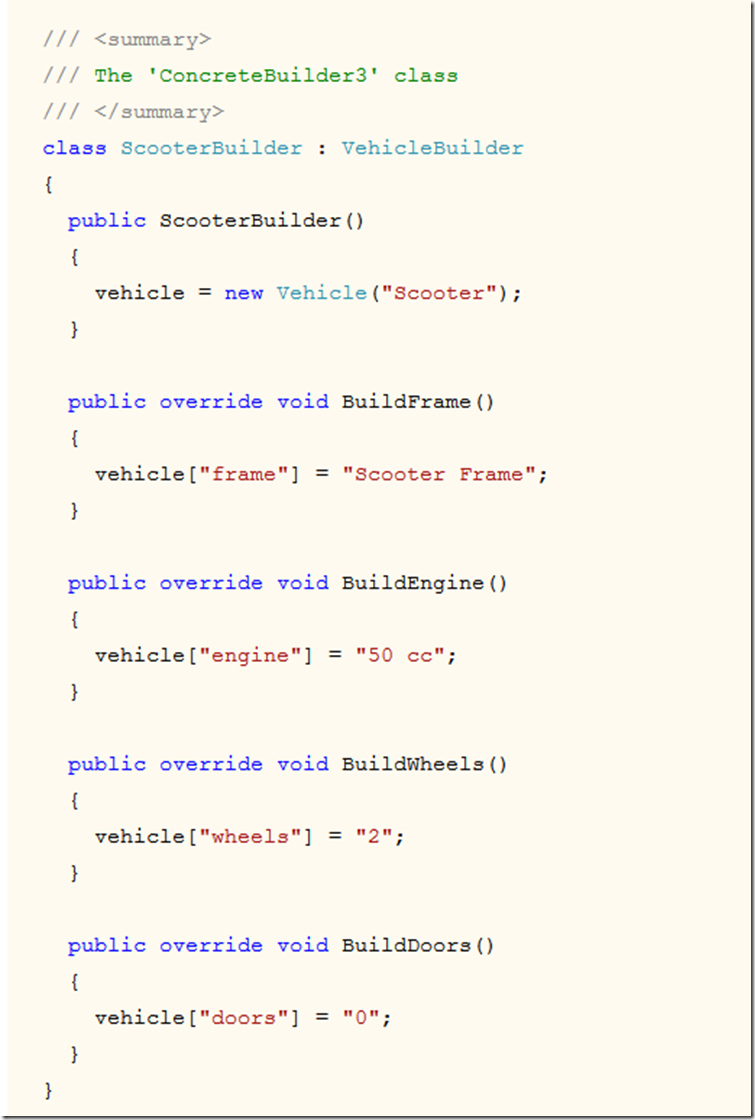

Concrete Builder

Director

Client code which calls director

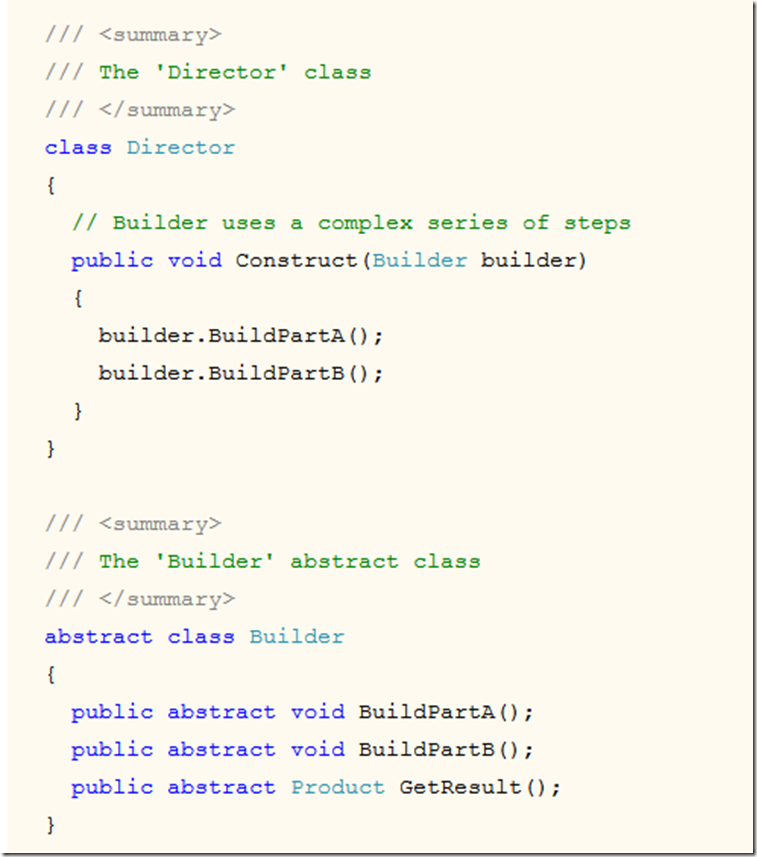

Sample code for Builder pattern

Real world example for Builder pattern

What we built

The Prototype Pattern

Note: In this pattern, We are going to copying object instead of Newing object.

Problem 1

Note: In this above example, when we run this program it will take time to fetch some data from web. This is right situation to use proto type instance in our application.

Solution for this Problem

Problem 2

Solution to this problem

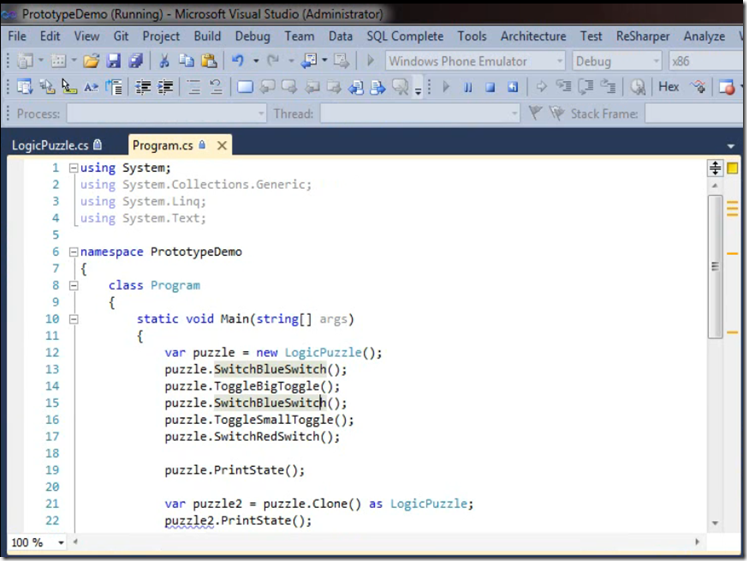

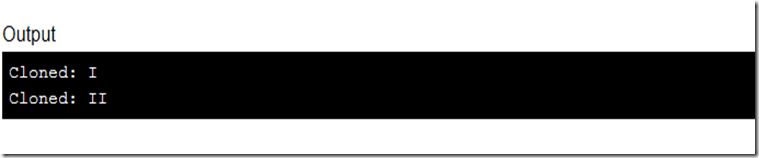

Sample code for Prototype Pattern

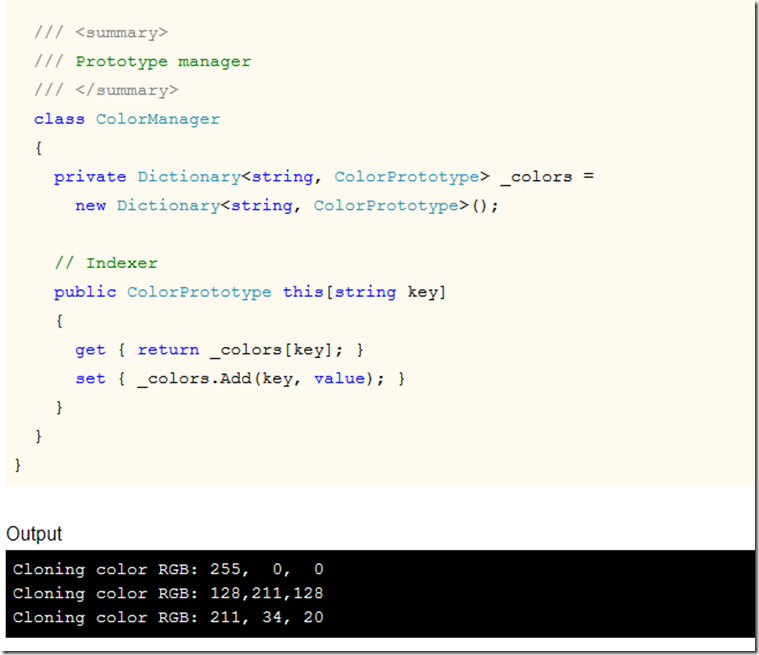

Real world Example of Prototype Pattern

Language Examples

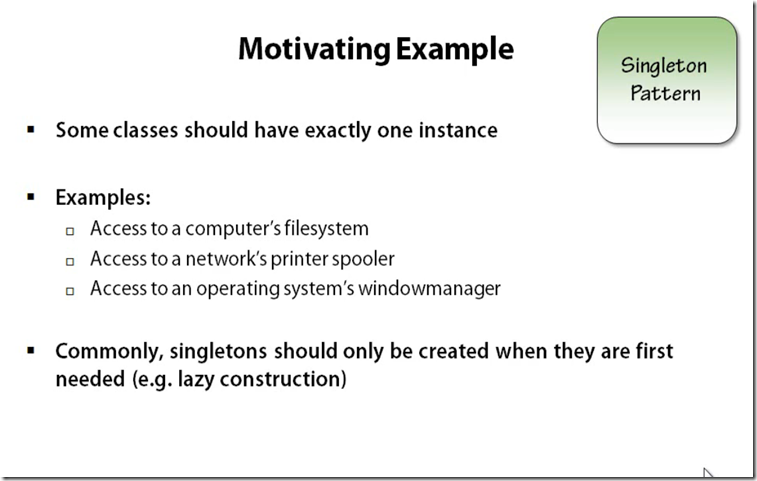

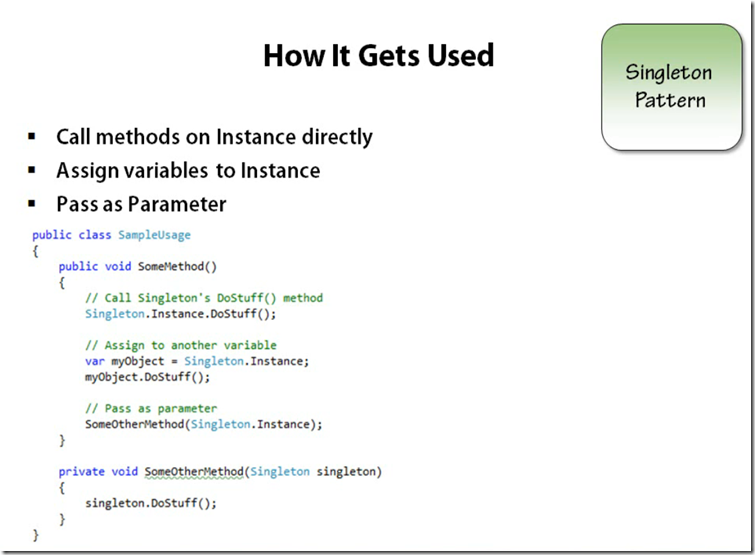

Singleton Pattern

Sample code for Singleton Pattern

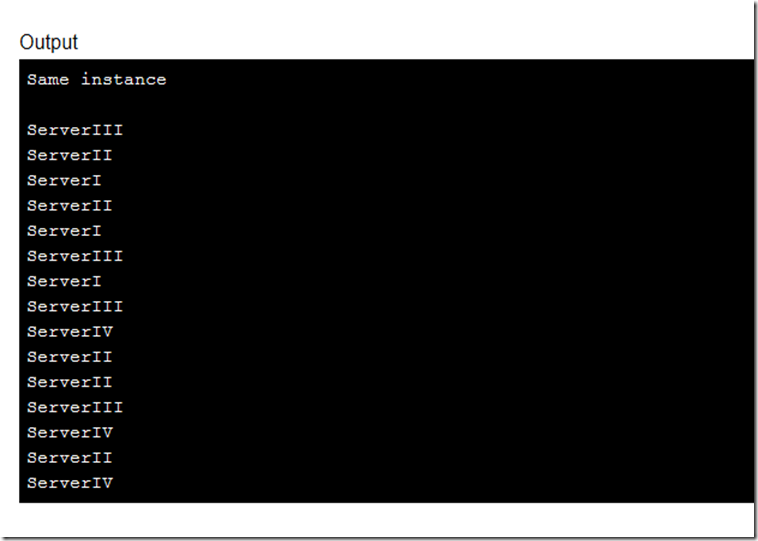

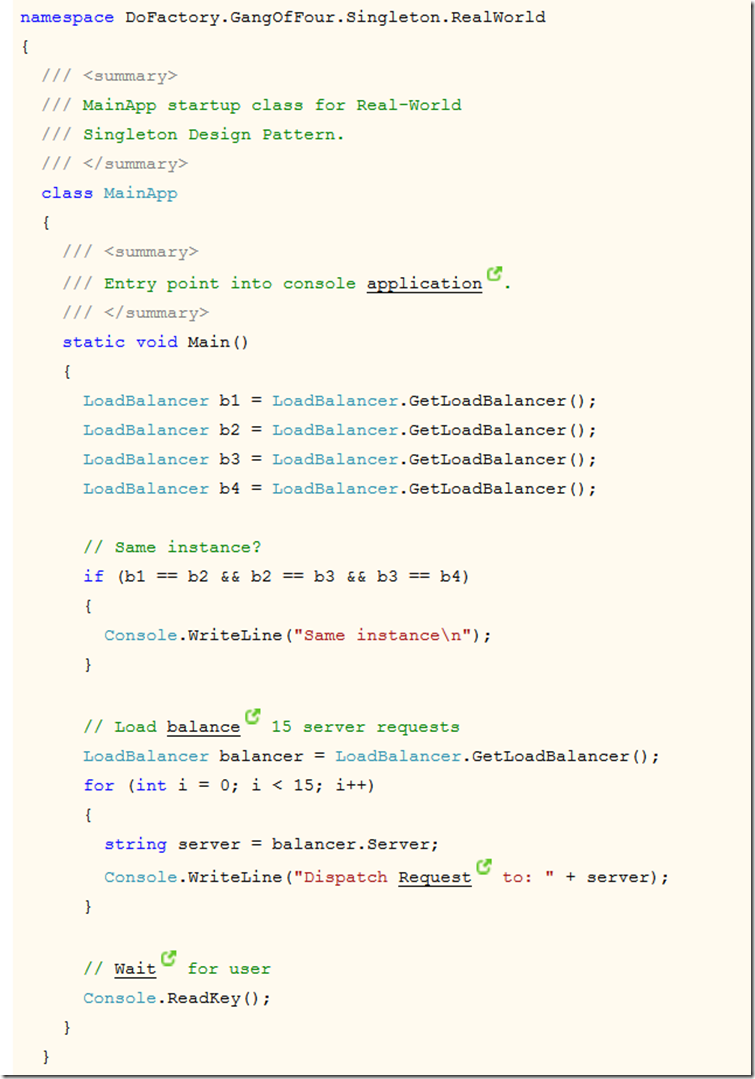

Real world example of Singleton pattern

The lock keyword marks a statement block as a critical section by obtaining the mutual-exclusion lock for a given object, executing a statement, and then releasing the lock. The following example includes a lock statement.

The lock keyword ensures that one thread does not enter a critical section of code while another thread is in the critical section. If another thread tries to enter a locked code, it will wait, block, until the object is released.

The section Threading (C# and Visual Basic) discusses threading.

The lock keyword calls Enter at the start of the block and Exit at the end of the block. A ThreadInterruptedException is thrown if Interrupt interrupts a thread that is waiting to enter a lock statement.

In general, avoid locking on a public type, or instances beyond your code's control. The common constructs lock (this), lock (typeof (MyType)), and lock ("myLock") violate this guideline:

lock (this) is a problem if the instance can be accessed publicly.
lock (typeof (MyType)) is a problem if MyType is publicly accessible.
lock("myLock") is a problem because any other code in the process using the same string, will share the same lock.

Best practice is to define a private object to lock on, or a private static object variable to protect data common to all instances.

You can't use the await keyword in the body of a lock statement.
