Introduction To ASP.NET Web Services

Technologies related to Web Services

HTTP Technology

Looking at the HTTP

Note: Fiddler is excellent tool which can be used to trace the HTTP communication over the network.

XML Technology

Note: XML is basic format medium to communicate over the network to other systems

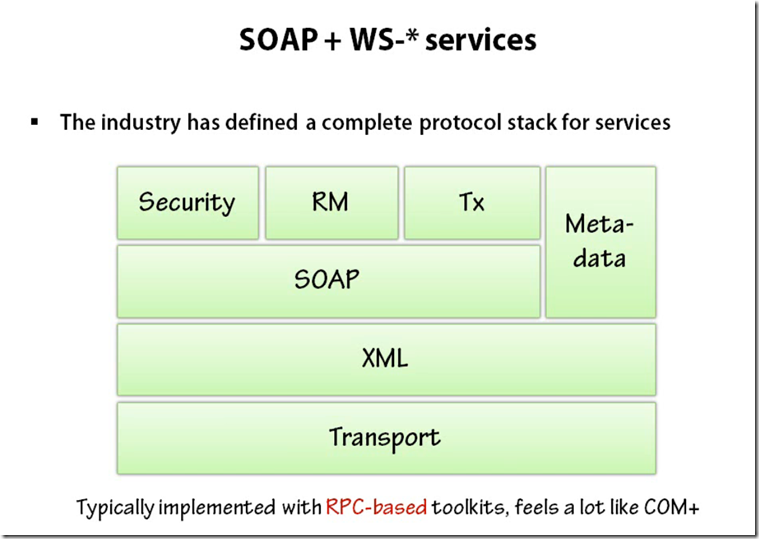

SOAP Technology

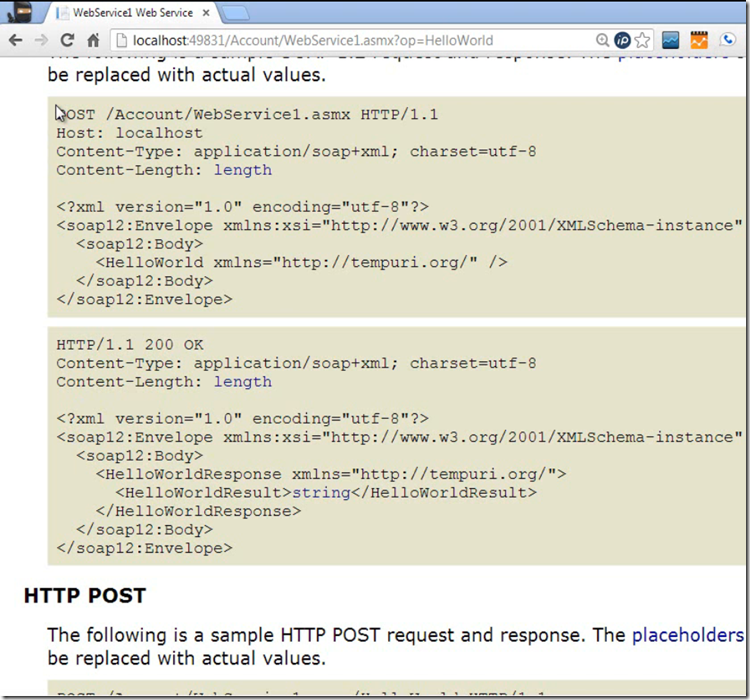

Looking at the SOAP

Note: This is common Request and Response format for SOAP request.

WSDL Technology

Looking at the WSDL

Note: This WSDL file is kind of MENU for our web services to work with. Basically it defines all the methods and communication mechanism for your clients who calls this services.

How it works

Hello World for Web Services

Creating A Simple Web Service

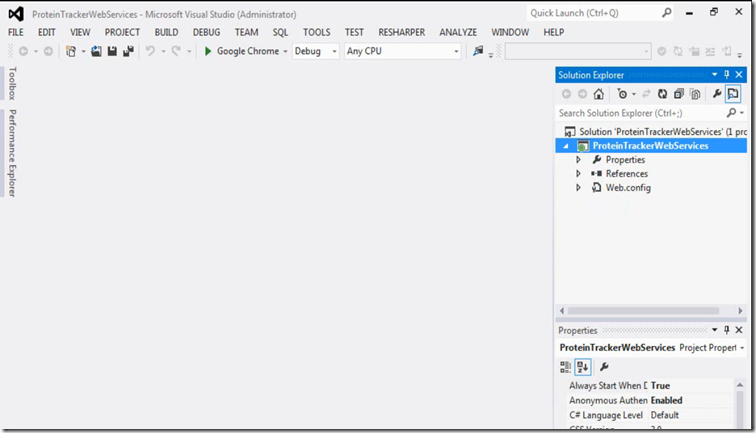

Creating the Projects

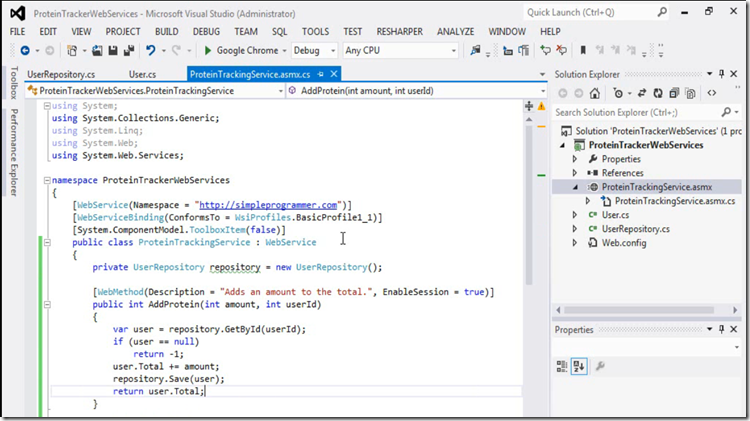

Creating Add Protein method

Web Method parameters

Enabling Session

Add User

Creating Add User

Adding List Users

Fixing Add protein

The Repository Pattern

Using the Repository Pattern

Testing Our Web Services

Consuming Web Services

Creating Project for Web Service Client

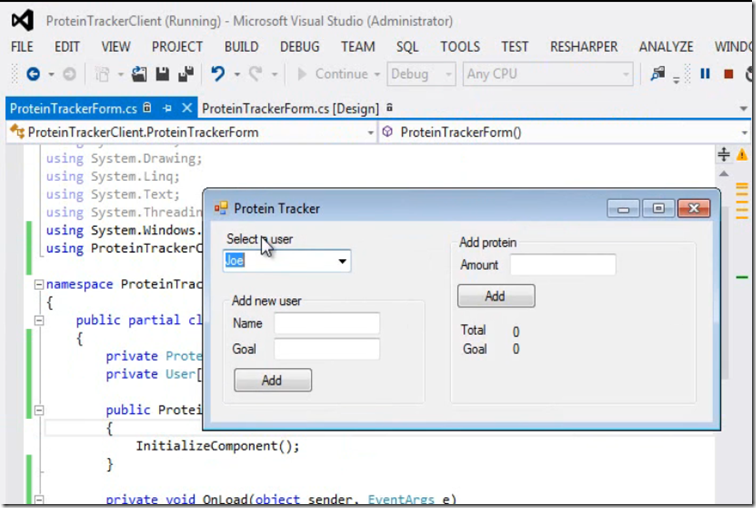

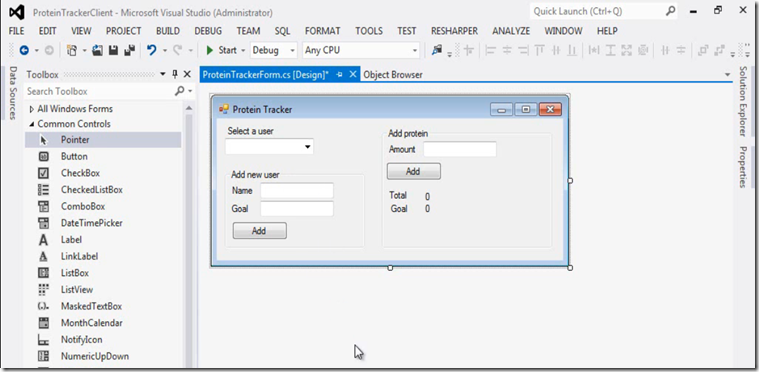

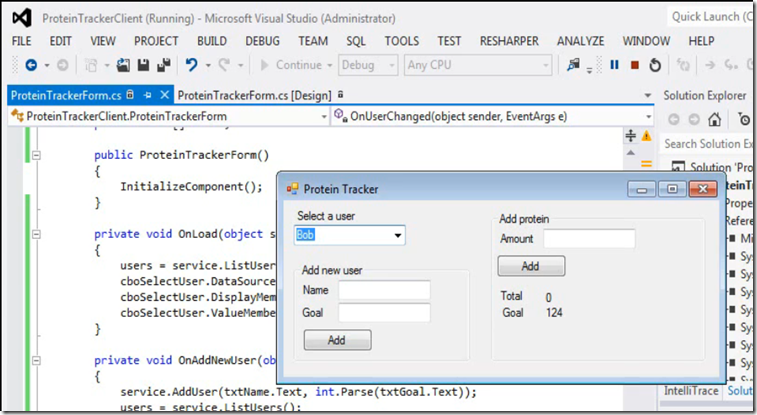

Creating UI

Adding a Service Reference

Calling List Users

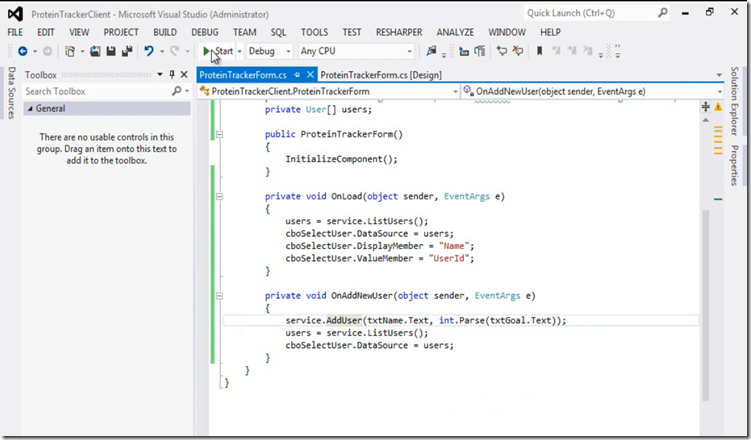

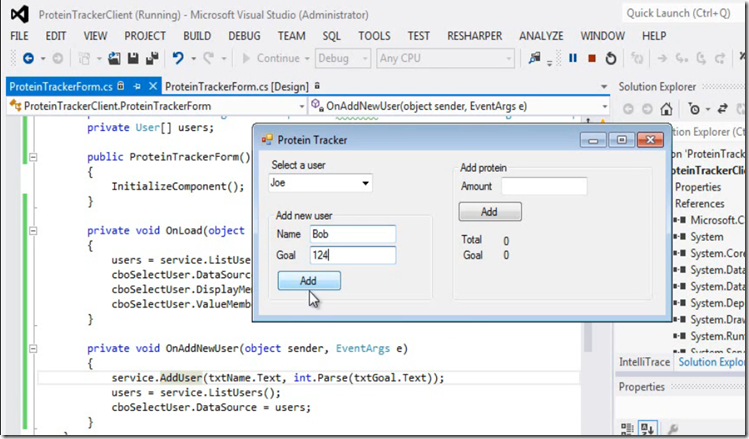

Adding a User

Updating total and Goal

Calling Add Protein

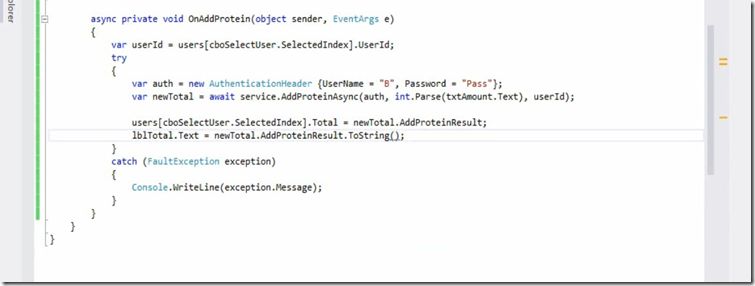

Adding Delay and use New Async in Web Services

Note: If you use Async and Await keyword then Web services call will not block the UI thread.

Old Async Pattern

Exceptions in Web Services

Custom SOAP header

Manually Generating Proxy Classes

Note: This WSDL tool will generate the proxy classes for our Web services Client call.

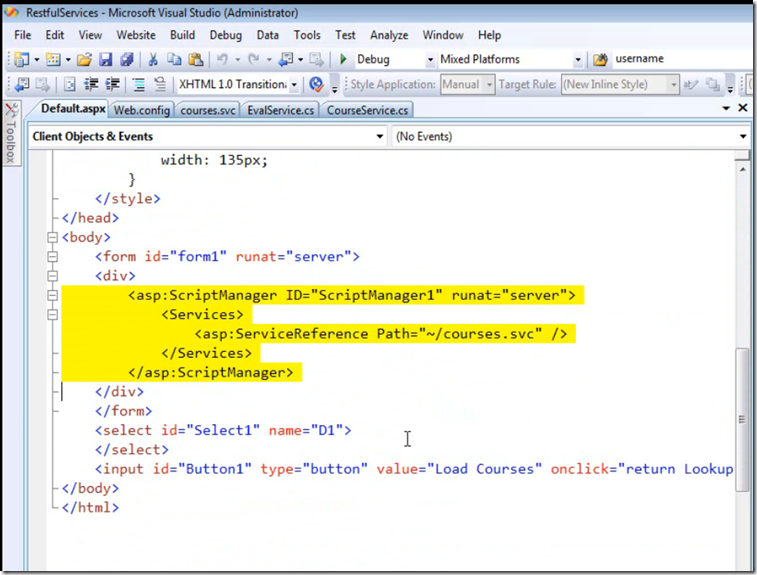

Web Services and AJAX

Setting up the project

Creating Select UI

How AJAX Works

Getting ready to call web Services

Populating Select List

Testing the UI dummy Services

Using Real Web Services

Adding New User UI

Implementing Add New User

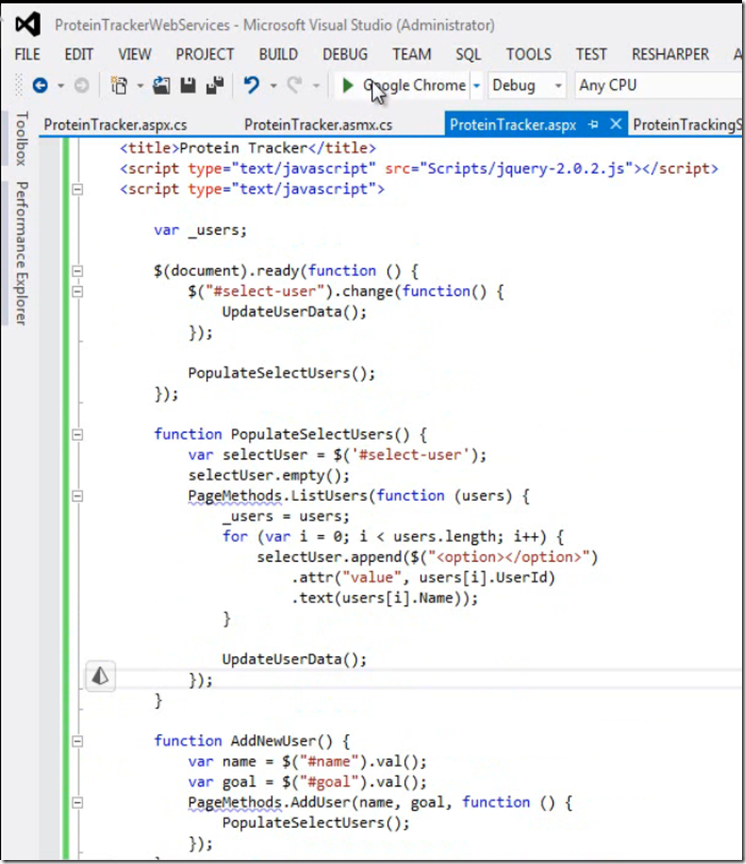

Using Page Methods

Using JQuery for Web Services Call

Migrating to Newer Technologies

Technology Choices

Preparing for WCF

Creating WCF Services

Running WCF

Creating the WEB API Project

Creating USER Controller

Adding Methods

Adding GET and POST

GET

POST

Testing the API

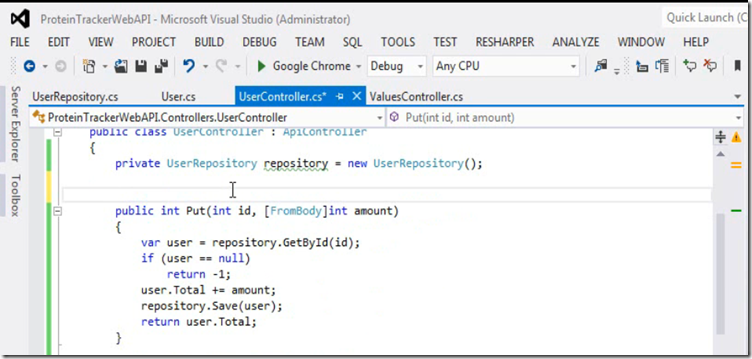

Implementing PUT

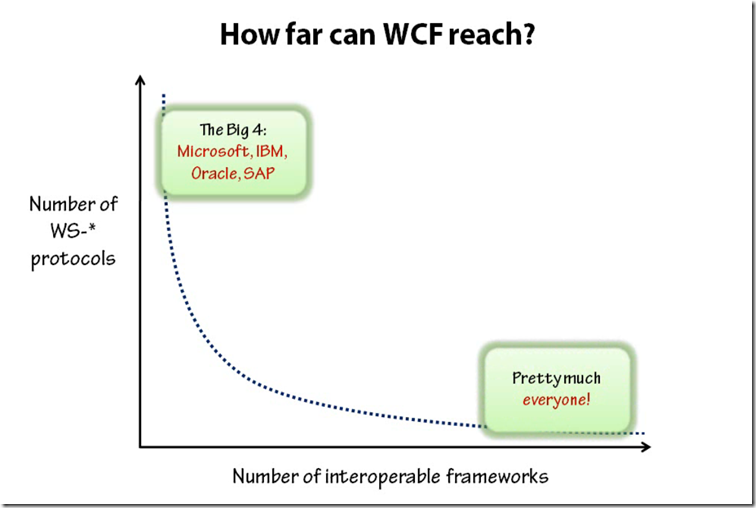

Introducing WCF

Difference between WCF and Web service

Sample SOAP message

Introducing WCF

WCF Architecture

Contracts

Contracts layer are next to that of Application layer. Developer will directly use this contract to develop the service. We are also going to do the same now. Let us see briefly what these contracts will do for us and we will also know that WCF is working on message system.

Service contracts

- Describe about the operation that service can provide. Example, Service provided to know the temperature of the city based on the zip code, this service we call as Service contract. It will be created using Service and Operational Contract attribute.

Data contract

- It describes the custom data type which is exposed to the client. This defines the data types, are passed to and from service. Data types like int, string are identified by the client because it is already mention in XML schema definition language document, but custom created class or datatype cannot be identified by the client e.g. Employee data type. By using DataContract we can make client aware that we are using Employee data type for returning or passing parameter to the method.

Message Contract

- Default SOAP message format is provided by the WCF runtime for communication between Client and service. If it is not meeting your requirements then we can create our own message format. This can be achieved by using Message Contract attribute.

Policies and Binding

- Specify conditions required to communicate with a service e.g security requirement to communicate with service, protocol and encoding used for binding.

Service Runtime

- It contains the behaviors that occur during runtime of service.

Throttling Behavior- Controls how many messages are processed.
Error Behavior - Specifies what occurs, when internal error occurs on the service.
Metadata Behavior - Tells how and whether metadata is available to outside world.
Instance Behavior - Specifies how many instance of the service has to be created while running.
Transaction Behavior - Enables the rollback of transacted operations if a failure occurs.
Dispatch Behavior - Controls how a message is processed by the WCF Infrastructure.

Messaging

- Messaging layer is composed of channels. A channel is a component that processes a message in some way, for example, by authenticating a message. A set of channels is also known as a channel stack. Channels are the core abstraction for sending message to and receiving message from an Endpoint. Broadly we can categories channels as

Transport Channels

Handles sending and receiving message from network. Protocols like HTTP, TCP, name pipes and MSMQ.
Protocol Channels

Implements SOAP based protocol by processing and possibly modifying message. E.g. WS-Security and WS-Reliability.

Activation and Hosting

- Services can be hosted or executed, so that it will be available to everyone accessing from the client. WCF service can be hosted by following mechanism

IIS

Internet information Service provides number of advantages if a Service uses Http as protocol. It does not require Host code to activate the service, it automatically activates service code.
Windows Activation Service

(WAS) is the new process activation mechanism that ships with IIS 7.0. In addition to HTTP based communication, WCF can also use WAS to provide message-based activation over other protocols, such as TCP and named pipes.
Self-Hosting

WCF service can be self hosted as console application, Win Forms or WPF application with graphical UI.
Windows Service

WCF can also be hosted as a Windows Service, so that it is under control of the Service Control Manager (SCM).

WCF Experience

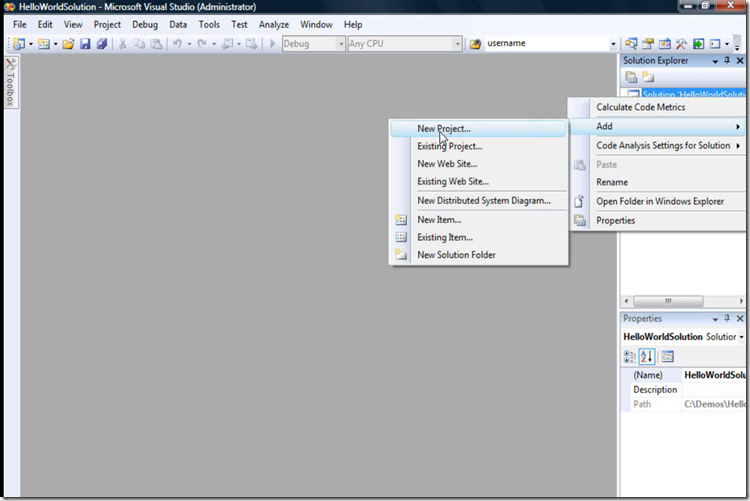

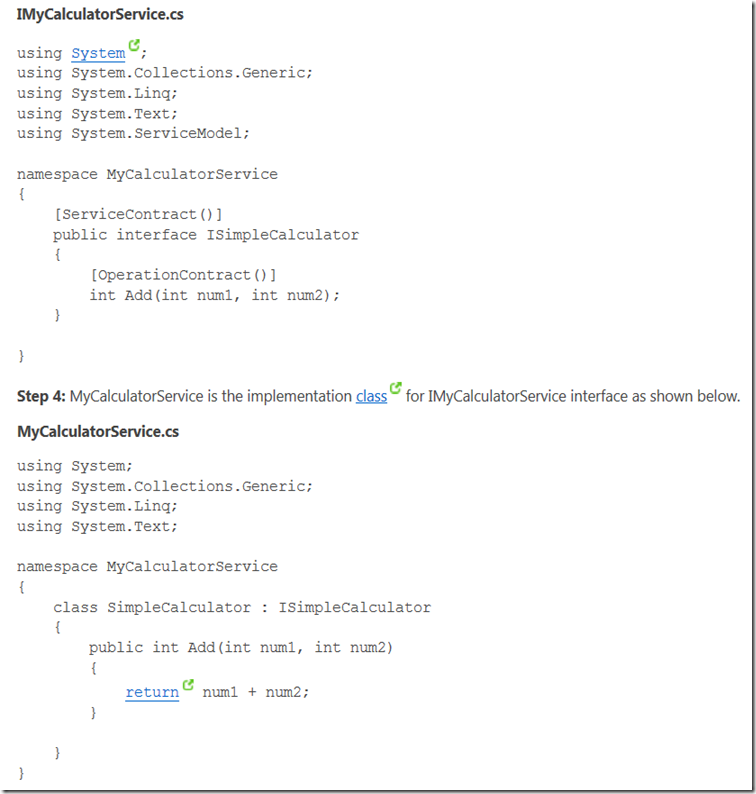

Demo of Simple WCF services Host

Services and End Points

Some Build in Bindings

Demo of Simple WCF Client application

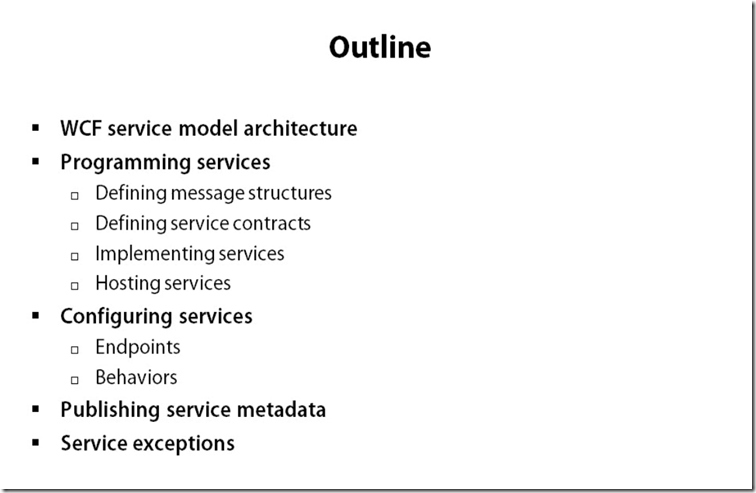

Programming Services

WCF Service Model Architecture

Contracts

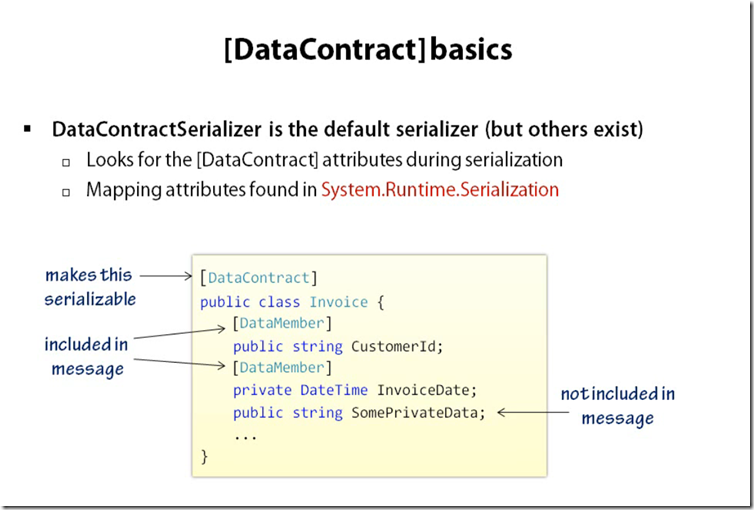

Define Data Contract

Define Service Contracts

Message Contract

MessageHeaderArray Attribute

Message Contract Properties

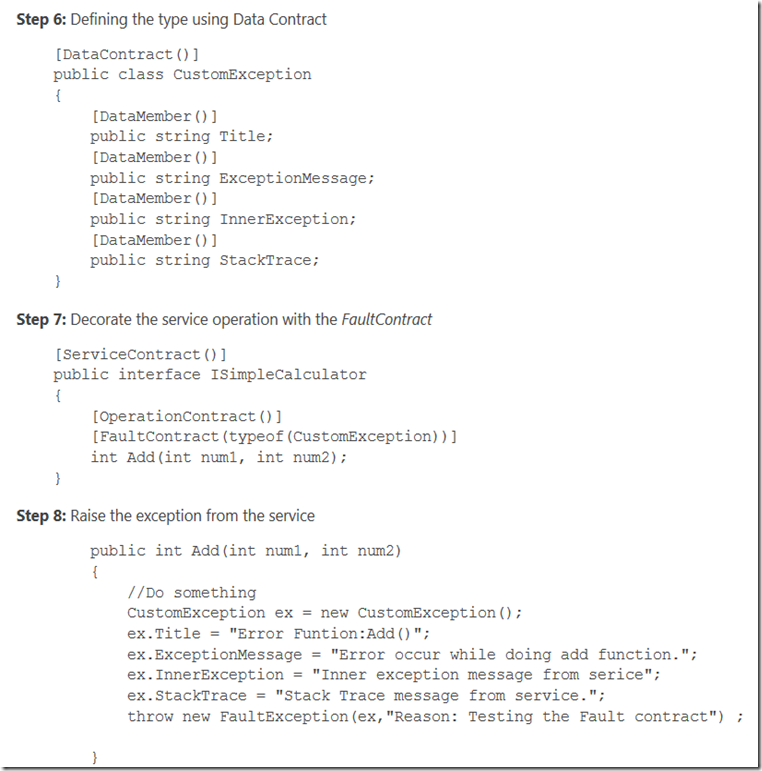

Fault Contract

Instancing and Threading

Instance Deactivation

Durable Service

Throttling

Programming Model

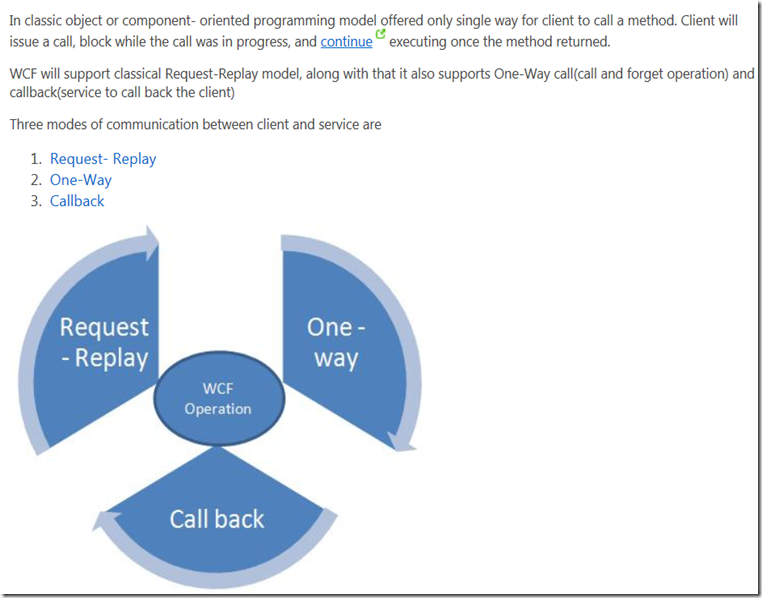

Operation Services on WCF

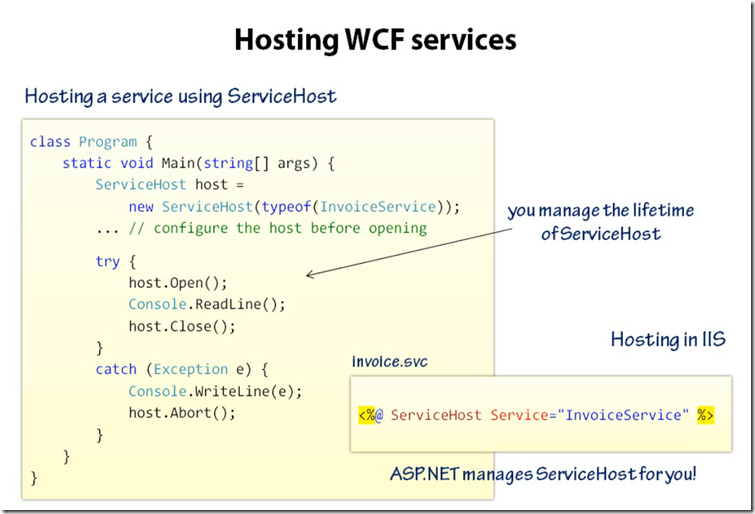

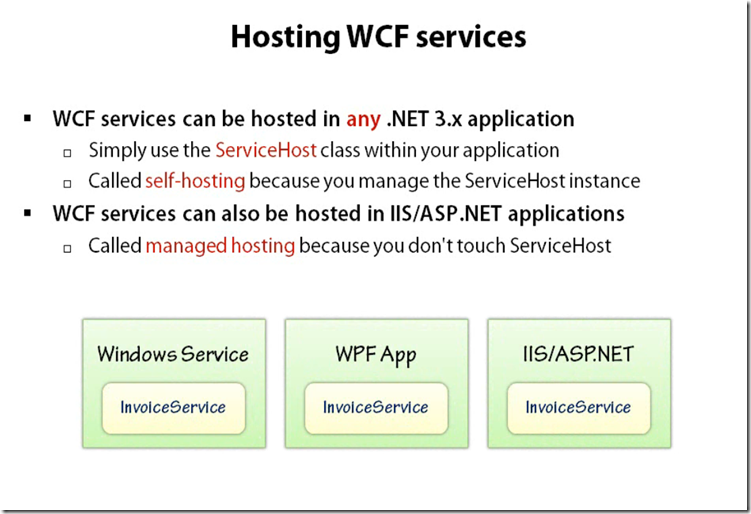

WCF Hosting Services

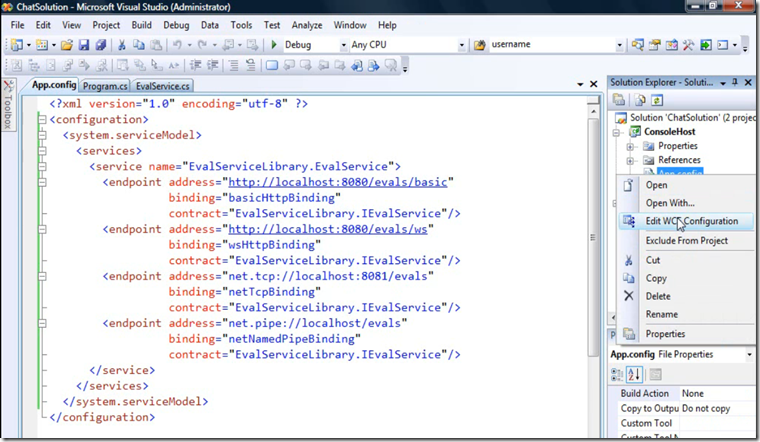

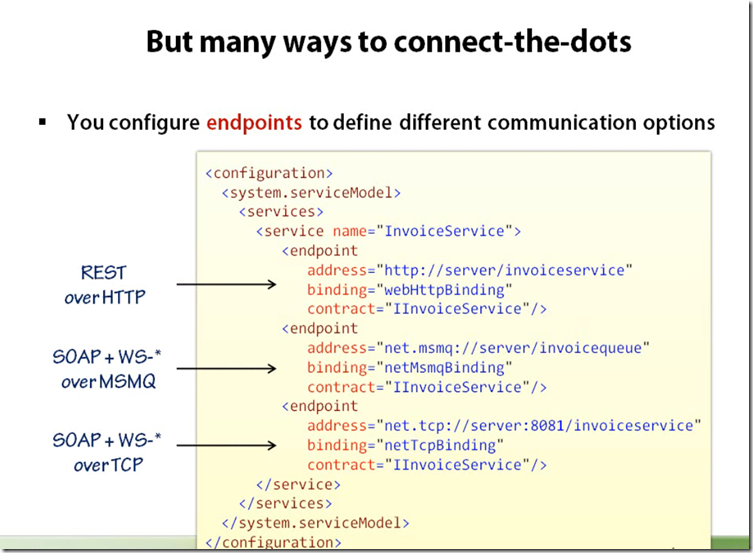

Address and Bindings

WCF Address

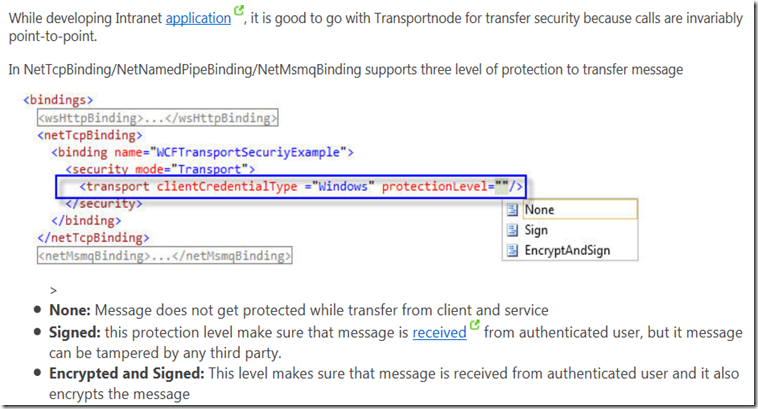

WCF Bindings

Types of Bindings

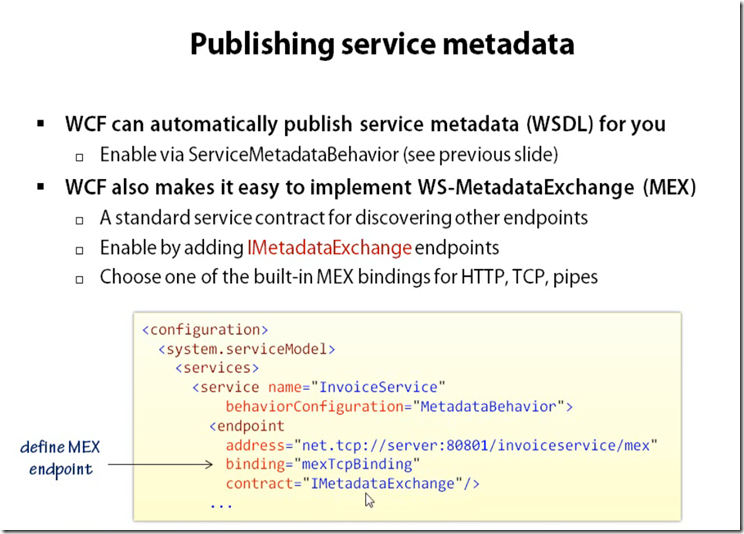

Metadata Exchange

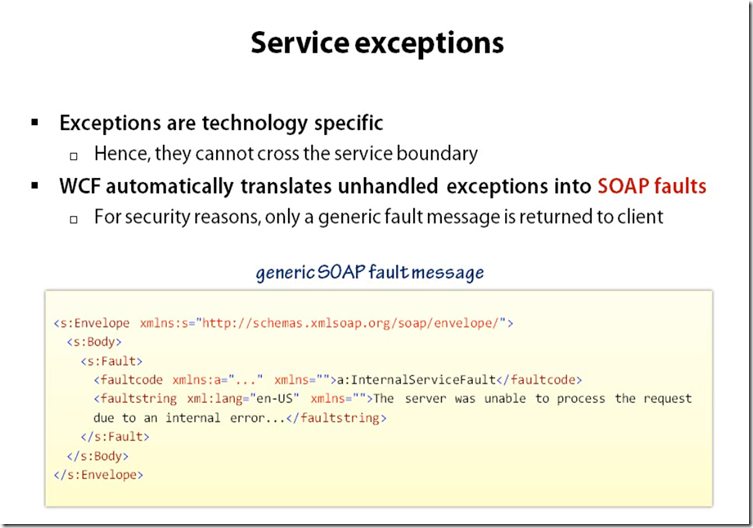

Service Exceptions

Transfer mode

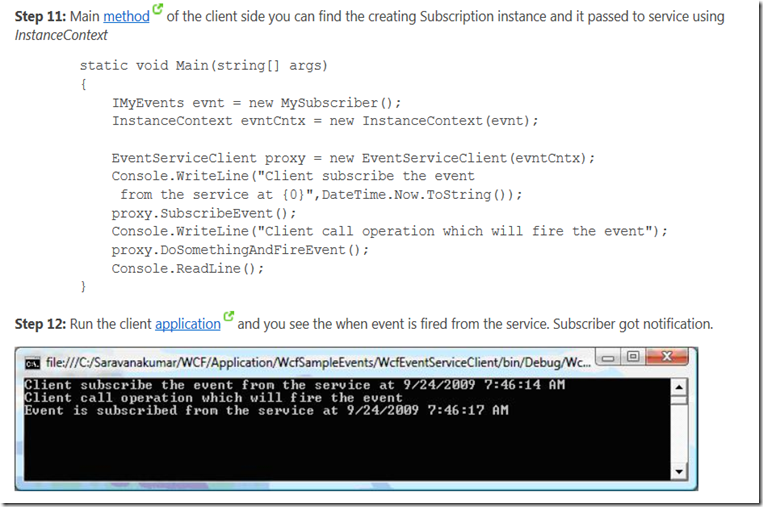

Events

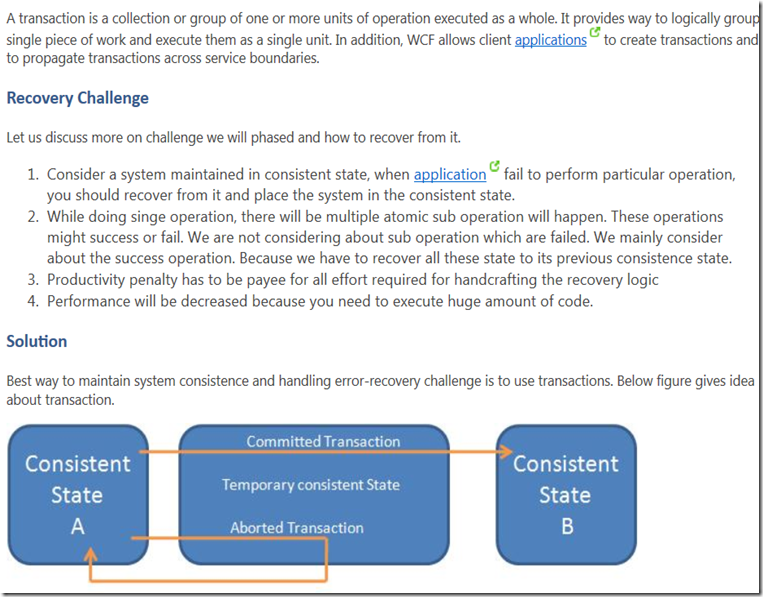

Transaction

Two-phase committed protocol

Consider the scenario where I am having single client which use single service for communication and interacting with single database. In which service starts and manage the transaction, now it will be easy for the service to manage the transaction.

Consider for example client calling multiple service or service itself calling another service, this type of system are called as Distributed Service-oriented application. Now the questions arise that which service will begin the transaction? Which service will take responsibility of committing the transaction? How would one service know what the rest of the service feels about the transaction? Service could also be deployed in different machine and site. Any network failure or machine crash also increases the complexity for managing the transaction.

Transaction Propagation

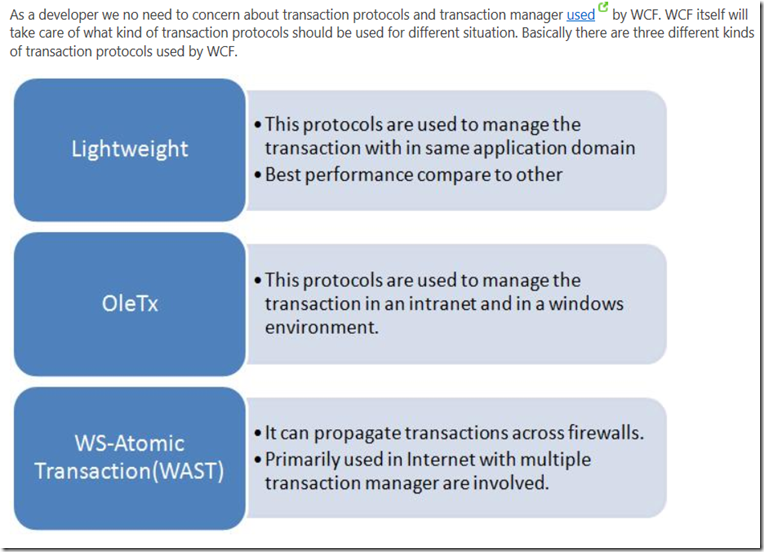

Transaction Protocols

Transaction Mode

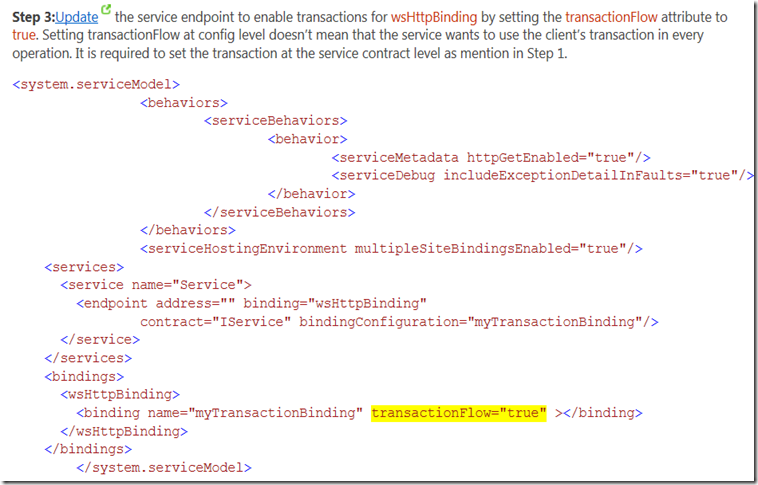

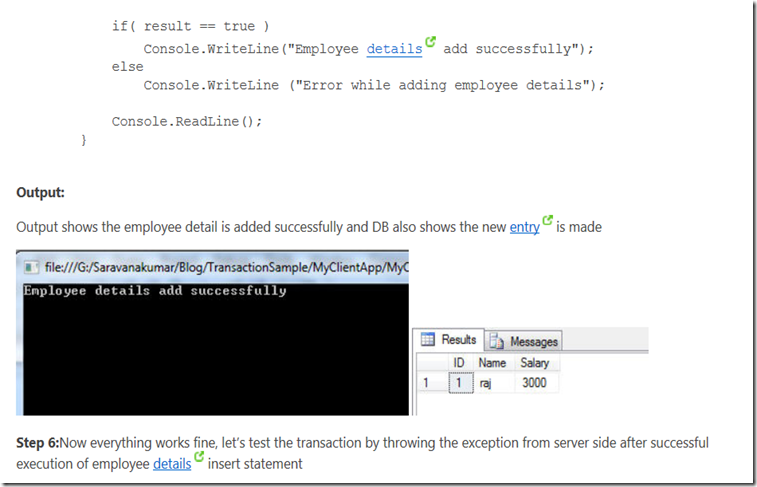

How to Create WCF Transaction

Demo of SELF Hosting Services

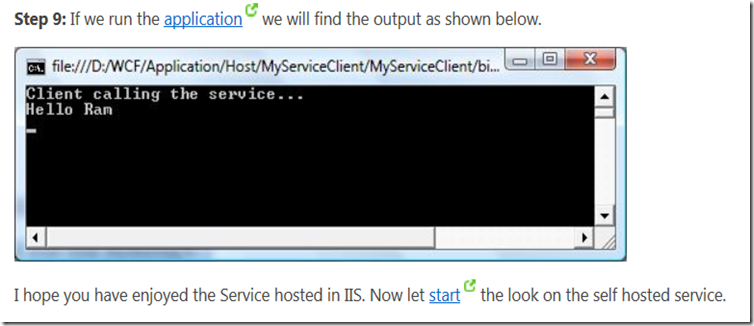

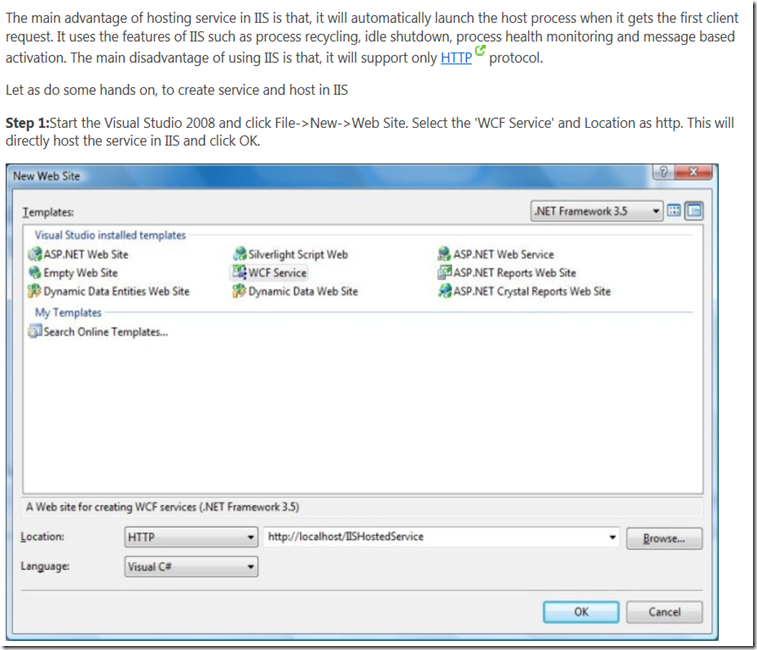

Demo of IIS Hosting Services

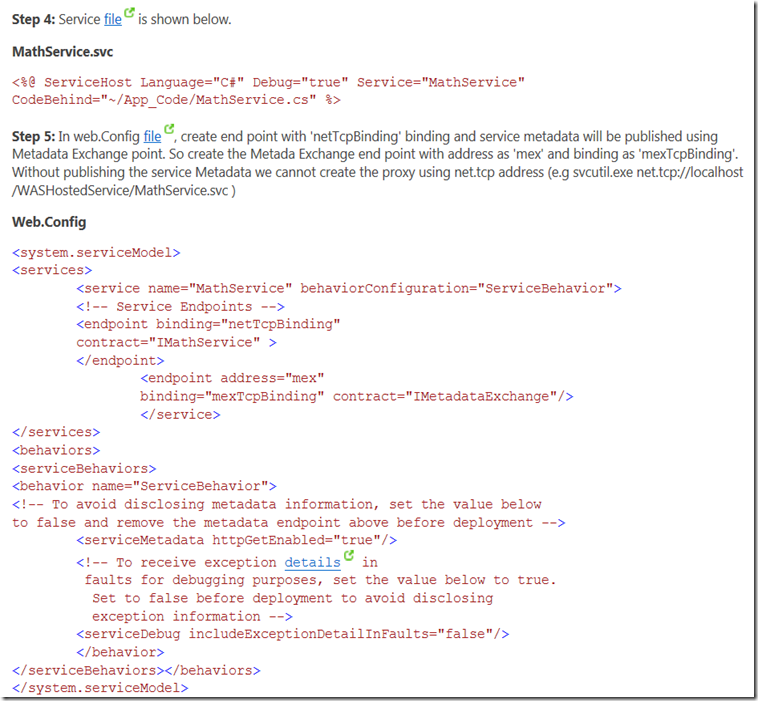

Windows Activation Service

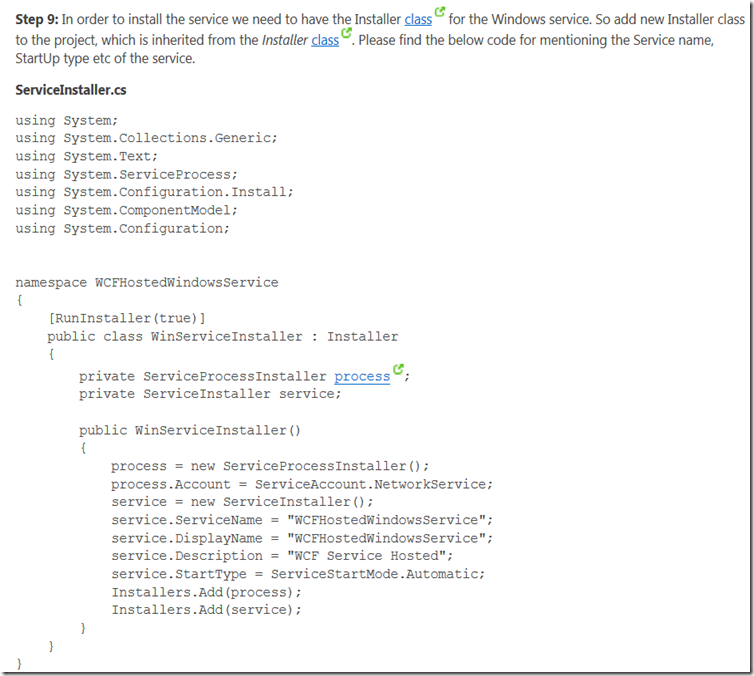

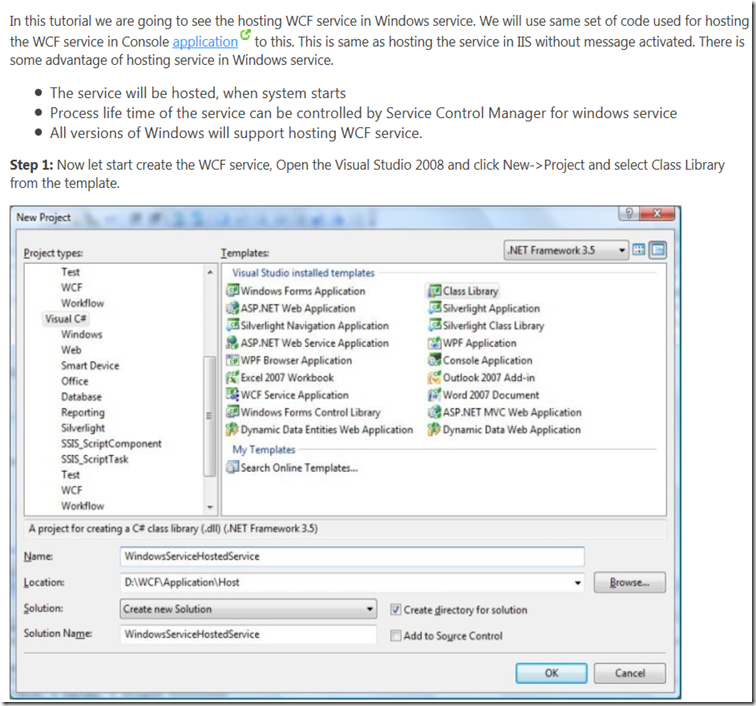

Windows Service Hosting

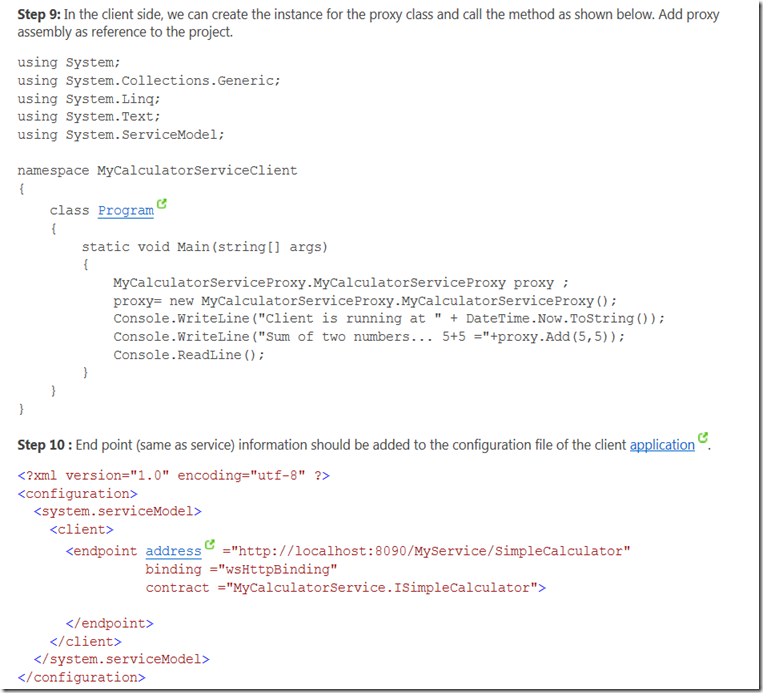

Step 11: Now service is Hosted sucessfully and we can create the proxy class for the service and start using in the client applcaiton.

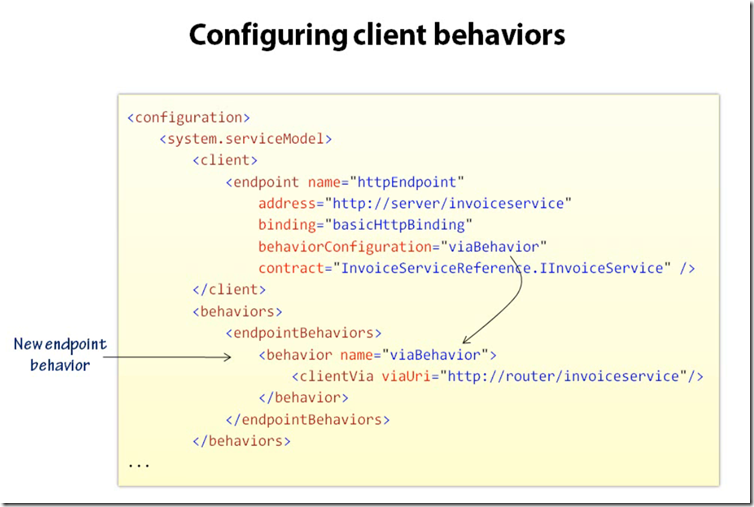

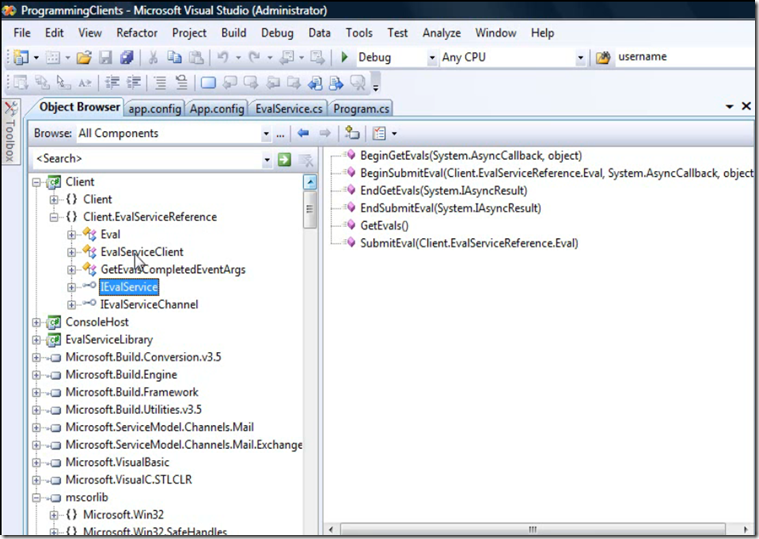

Programming Clients

Demo of Using ServiceUtil.exe

This is one way to get the WSDL information via IE

This is another way to get WSDL information via ServiceUtil with META data

This is another way to get WSDL information via ServiceUtil with MEX protocol

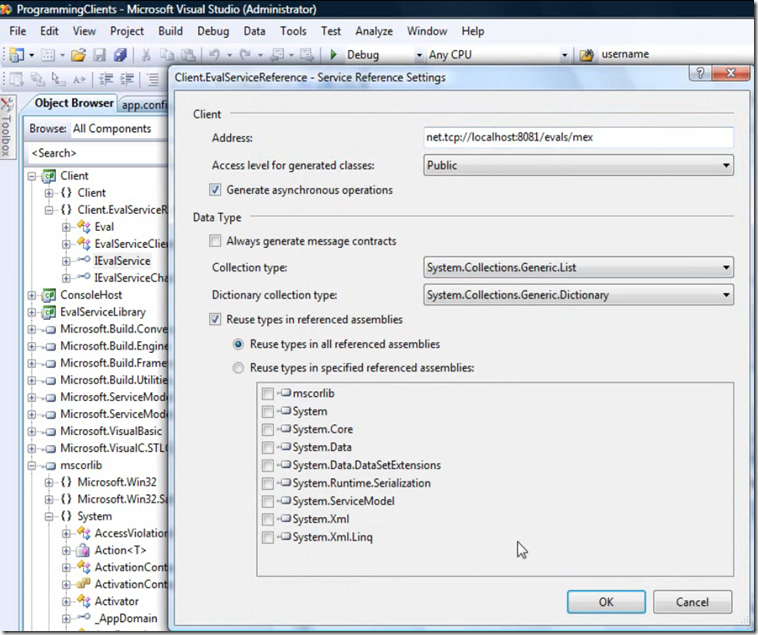

Demo of using Service Reference

Programming WCF Channels

Demo of Creating, Using, and Closing Channels

Demo of Using Proxy Class

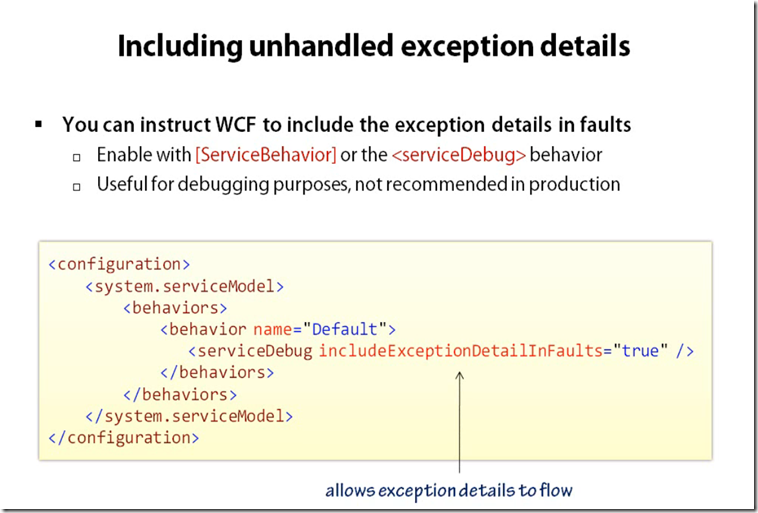

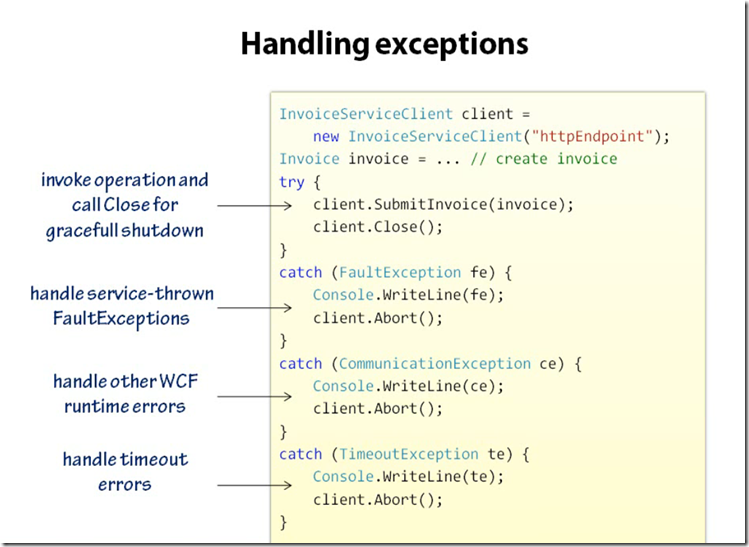

Handling Exceptions at Client Side

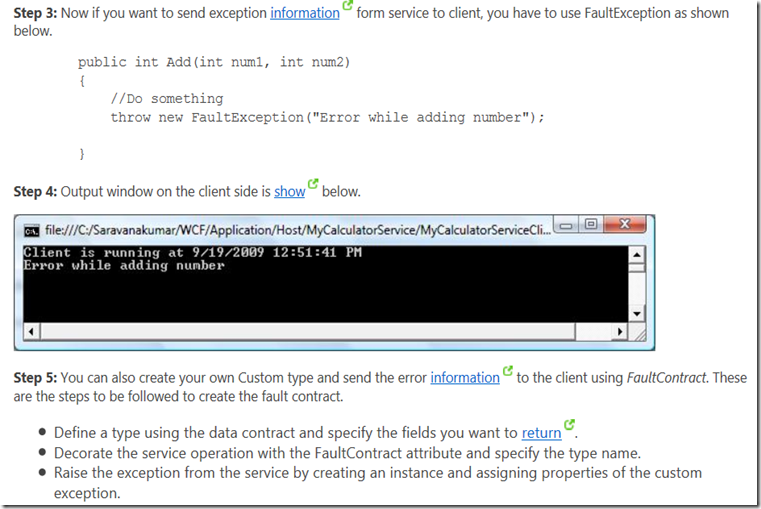

Demo of Handling Exceptions

Client Code:

Service Code:

Demo of Using Asynchronous

Demo of Sharing Service Contract Assemblies

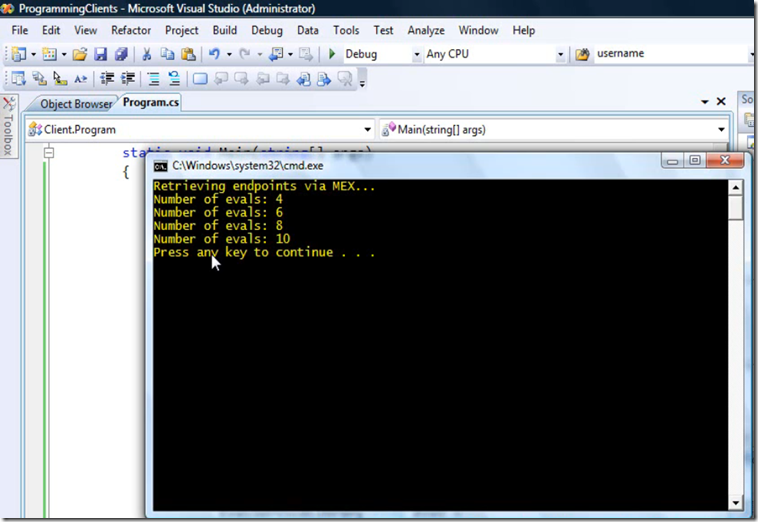

Demo of Using Meta Data Resolver

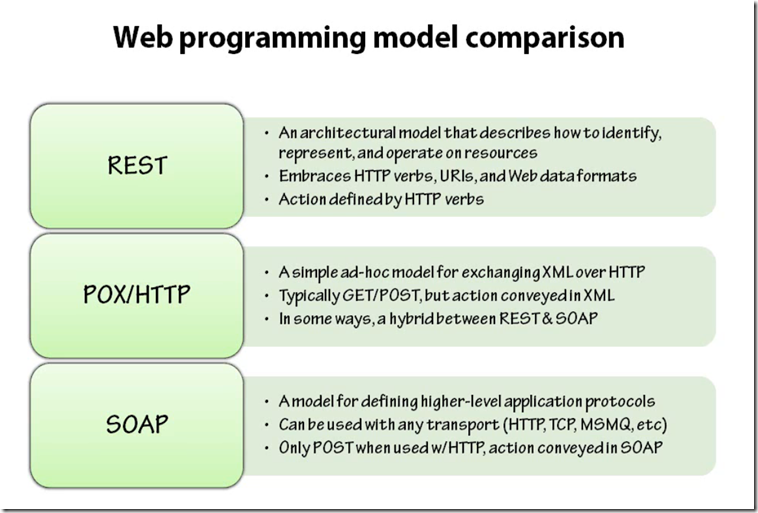

RESTful Services

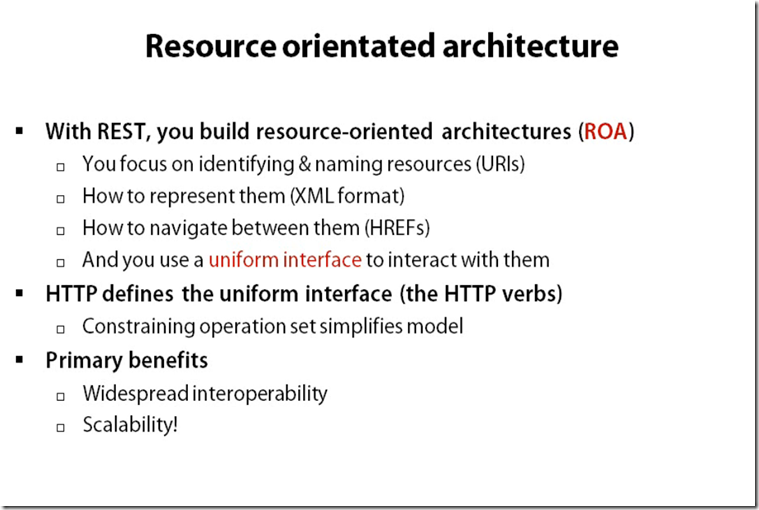

Introduction to RESTful service

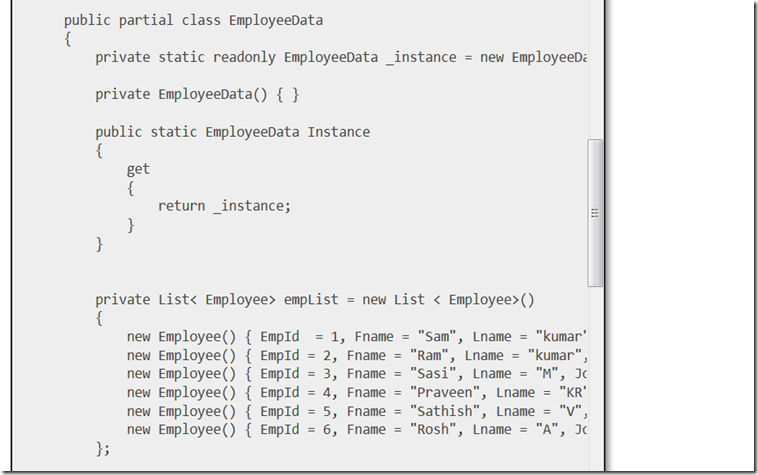

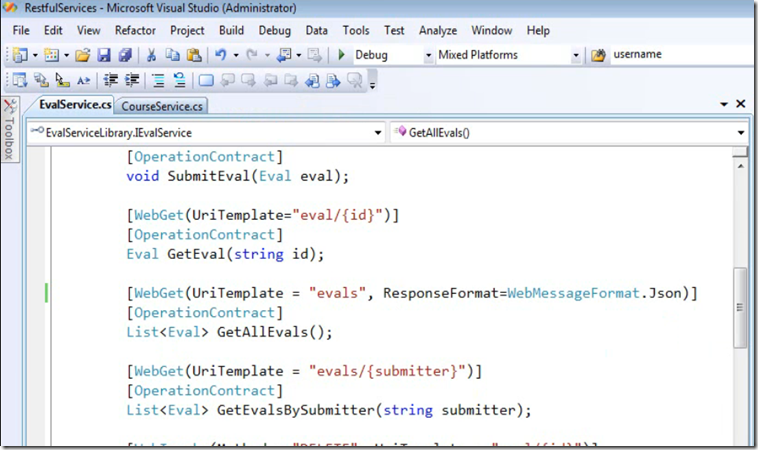

Demo of REST-ful Service implementation

Uri httpUrl = new Uri("http://localhost:8090/MyService/EmployeeService");
                WebServiceHost host = new WebServiceHost(typeof(MyFirstRESTfulService.EmployeeService), httpUrl);
                host.Open();

                foreach (ServiceEndpoint se in host.Description.Endpoints)
                        Console.WriteLine("Service is host with endpoint " + se.Address);
                //Console.WriteLine("ASP.Net : " + ServiceHostingEnvironment.AspNetCompatibilityEnabled);
                Console.WriteLine("Host is running... Press < Enter > key to stop");
                Console.ReadLine();

Step 8:Now we can start with client application. For this example we can create a console application to read the employee information and add new employee to the server resource. Below code first read the employee details from the server and add new employee and once again it read the employee details to confirm the added resource.

WebChannelFactory < IEmployeeService > cf =
               new WebChannelFactory< IEmployeeService >(
                   new Uri("http://localhost:8090/MyService/EmployeeService"));
            IEmployeeService client = cf.CreateChannel();
            var d = client.GetEmployee(1);
            //Load all the Employee from the server and display
           foreach (Employee e in   client.GetAllEmployeeDetails() )
           {
           Console.WriteLine(string.Format("EmpID:{0}, Name:{1} {2}",e.EmpId ,e.Fname ,e.Lname ));
           }

            //Add new user
           client.AddEmployee(new Employee() { EmpId = 11, Fname = "John", Lname = "J", JoinDate = new DateTime(2010, 7, 24), Age = 34, Salary = 10000, Designation = "Software Engineer" });

            Console.WriteLine("******************After adding new user ****************");

        //Load all the Employee from the server and display
         foreach (Employee e in   client.GetAllEmployeeDetails() )
           {
           Console.WriteLine(string.Format("EmpID:{0}, Name:{1} {2}",e.EmpId ,e.Fname ,e.Lname ));
           }
            Console.ReadLine();
        }

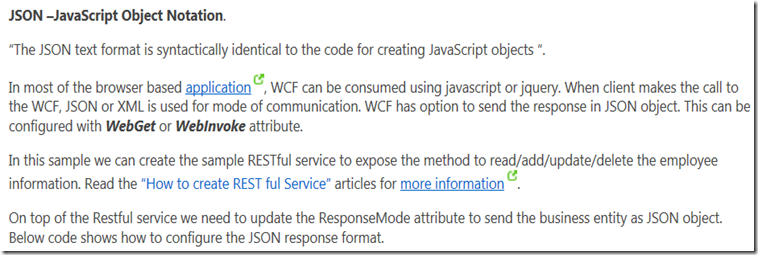

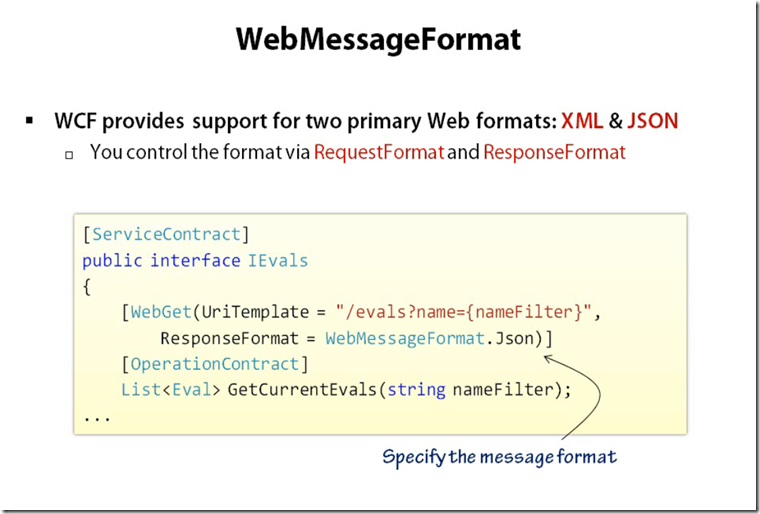

JSON using WCF service

[ServiceContract()]
    public interface IEmployeeService
    {
        [WebGet(UriTemplate = "Employee", ResponseFormat=WebMessageFormat.Json )]
        [OperationContract]
        List < Employee > GetAllEmployeeDetails();

        [WebGet(UriTemplate = "Employee?id={id}", ResponseFormat = WebMessageFormat.Json)]
        [OperationContract]
        Employee GetEmployee(int Id);

        [WebInvoke(Method = "POST", UriTemplate = "EmployeePOST", ResponseFormat = WebMessageFormat.Json, RequestFormat = WebMessageFormat.Json)]
        [OperationContract]
        void AddEmployee(Employee newEmp);

        [WebInvoke(Method = "PUT", UriTemplate = "EmployeePUT", ResponseFormat = WebMessageFormat.Json, RequestFormat = WebMessageFormat.Json)]
        [OperationContract]
        void UpdateEmployee(Employee newEmp);

        [WebInvoke(Method = "DELETE", UriTemplate = "Employee/{empId}", ResponseFormat = WebMessageFormat.Json)]
        [OperationContract]
        void DeleteEmployee(string empId);
    }
