HTTP Fundamentals

HTTP Resources

Uniform Resource Locator (URL)

Browser return below content from server to display for user

HTTP Vs IIS Server

IIS server will look at incoming HTTP request on server and return content from physical location of server where it is installed.

IIS Web Server DEMO

Ports, Queries and Fragments

DEMO of QueryString

URL Encoding

Commonly Encoded Values for UnSafe Characters

Content Types

Content Negotiation DEMO

HTTP Messages

Manual Request

DEMO of POST HTTP request

If we refresh this page again

DEMO of GET HTTP Request

The tool Fiddler is used to look Request and Response contents

HTTP Connections

DEMO of HTTP Connections

The tool WireShark is used to TCP/IP Handshaking between client and Server

Evolution of HTTP

Old Browser is using Serial connection HandShaking Mechanism

Modern Browsers using parallel connection Handshaking mechanism

Modern browsers are using Persistent Connection mechanism in Modern browsers

HTTP persistent connection, also called HTTP keep-alive, or HTTP connection reuse, is the idea of using a single TCP connection to send and receive multiple HTTP requests/responses, as opposed to opening a new connection for every single request/response pair.

Here, Single connection will be used for subsequent request and responses of browser. this is server depends.

Look at the connection close header response to indicate that connection closed at server side

Modern browsers are also using Pipe line Connection mechanism in Modern browsers

HTTP Architecture

Proxies Servers

If company wants to prohibit Twitter then proxy redirect to BIN

Reverse Proxy can do many services for company, like load balancing, compressing and etc.

Settings to check proxy at local machine

Caching

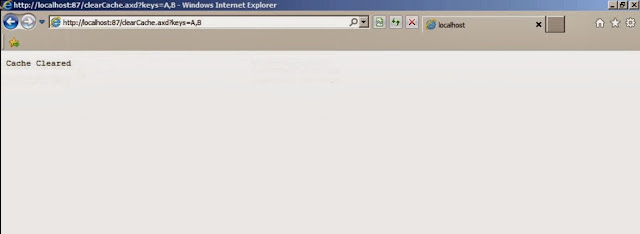

DEMO of Caching

Some Responses with Private Caching

Some responses with No Caching options

HTTP Security

Http is stateless protocol, that means for every request will have response from server and both the client and server will forget about transactions

Below listed Server side methods are available ASP.NET application programming model to save state between Server and Client transactions.

Cookies for State Management system

Cookies is client side state management mechanism to store information about HTTP Transactions.

Tracing Sessions and HTTP Only with the help of Cookies

Cookies(Session Cookies is Non persistence), Domains and Persistence

Below is non persistence cookie HTTP response.

Persistence cookie HTTP Response.

DEMO of Basic Authentication

Take the Basic Authorization information as below

Use below site to decrypt Basic Authorization information which we copied in our previous page

Here Digest authentication is like Basic Authentication, but in digest authentication use Advanced Encryption algorithm which is specified by server.

Chrome browser will be asking to provide user name and password via windows authentication

But IE will not ask user name and password directly instead it will take automatically from current system login identity by setting below settings.

There are two different authentication mechanism in Form based authentication. that is Secured(HTTPS) and Unsecured(HTTP) protocols. In HTTPS authentication our credentials would be encrypted based on certificates.

Open ID is centralized authentication mechanism now a days. At present applications are not ready to store and manage user credentials instead they are dealing with third party credential providers to get the user credentials to manage users' login.

Secure HTTP

HTTPS authentication mechanism is used to in form based authentication method to encrypt request and response messages.

IIS - Internet Information Server for Developers

IIS Setup

History of IIS

In windows 2000, IIS 5 was installed by default.

But in the case of windows 2003, IIS 6 was not installed as a default component in the system. Here site owner can select the version of .NET Framework which would reply with proper contents back to users' request.

In windows 2008, IIS 7 and IIS 7.5 was broken up into many sub components. This may reduce security vulnerability of user request by selecting appropriate components for specific services of server.

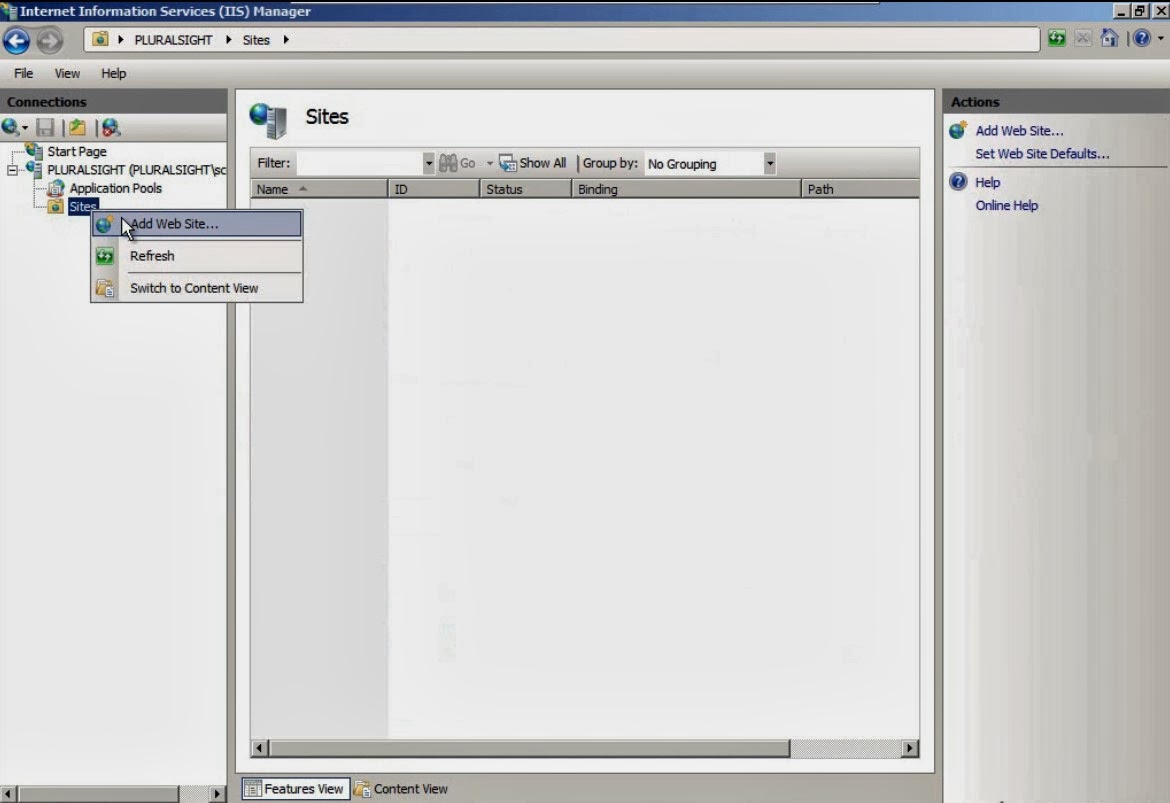

Installing IIS Via Server Manager

To install the latest MS Components via Web Platform Installer

Adding SSL Certificates

There are three things Browser will check when user makes HTTPS request based on certificate

Certificate date in range

Is this trusted certificate authority(Public key infrastructure)

Host name checking

SSL Wildcard sertificates

Wildcard certificate will be used to for multisub domain sites

IIS Configuration

Web config and IIS configs are interchangeable via Feature delegates

Based on below settings Application can read and Web.config can set the settings

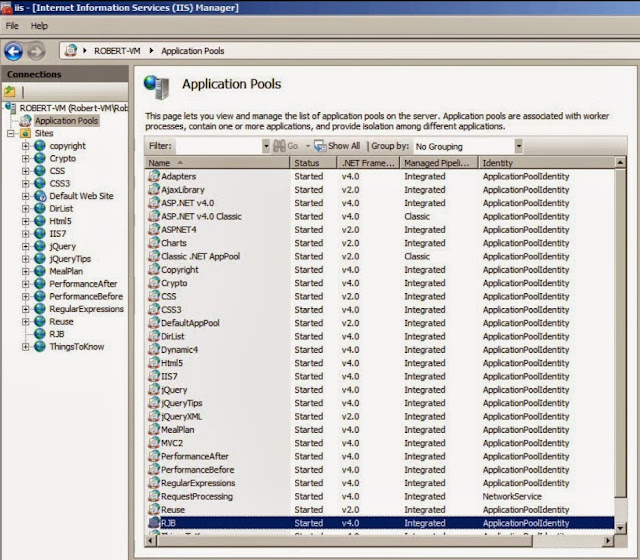

Application pools

Manage IIS

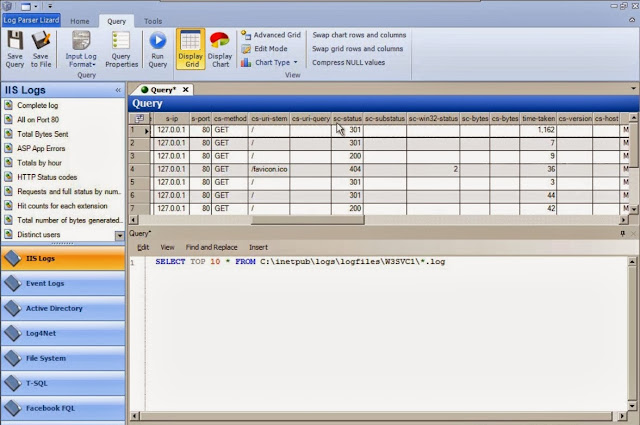

Log parser tool to analyze logs

Powershell for IIS Management

Web Deployment tool for IIS

Deployment command to copy website from one IIS location to another IIS location via Web Deployment command

Web Deployment push from VS

IIS Extensions

Installing Web Extensions from IIS site

Installing IIS Extensions from Web Platform Installer

IIS Express

Installing IIS Express

To view the IIS Express log and config files

Configure for HTTPS site under IIS Express

Browser fails to load page because localhost certificate expires

IIS 8 - What's New

IIS 8 Setup

Application Initialization

W3Wp process starts immediately when we restart IIS

Server Name Indication (SNI)

Server Name Indication (SNI) is an extension to the TLS protocol^[1] that indicates what hostname the client is attempting to connect to at the start of the handshaking process. This allows a server to present multiple certificates on the same IP address and port number and hence allows multiple secure (HTTPS) websites (or any other Service over TLS) to be served off the same IP address without requiring all those sites to use the same certificate. It is the conceptual equivalent to HTTP/1.1 virtual hosting for HTTPS.

To make use of SNI practical, it is necessary that the vast majority of users use web browsers that support it. Users whose browsers do not support SNI will be presented with a default certificate and hence are likely to receive certificate warnings, unless the server is equipped with a wildcard certificate that matches the name of the website.
